LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold

LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold

  • LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold
  • LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold
  • LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold
LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold
Product Details:
Place of Origin: China
Brand Name: KYE
Certification: ISO9001, ISO14001, IATF16949
Model Number: 2 plate-mold
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: To Be Negotiation
Packaging Details: Wooden Case With Steel Frame
Delivery Time: 30-50 working days after the 3D approved
Payment Terms: T/T
Supply Ability: 50 Sets Mould Per Month
Contact Now
Detailed Product Description
Mold Type: 2/3 Plate-mold Part Material: PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PA6, PBT+GF, PC/ABS, PEEK, HDPE, TPU, PET, PPO,etc
Mold Material: P20, 2311, H13, 2344, Starvax 420, 236, AdC3, S136, 2312, 2379, 2316, 2083, Nak80, 2767.etc Mold Base Material: S50C LKM, DME, LKM & HASCO & DME, HASCO, LKM Mould Base
Runner System: HUSKY, INCOE, YDDO, HASCO, DME, MoldMaster, Masterflow, Mastip, Taiwan Made Brand...etc. Mold Life: 300,000/500,000/1,000,000 Shots
Software: UG, PROE, CAD, CAD/ProE/UG/SOLIDWORKS
High Light:

HRC 48-52 OEM Mold Design Service

,

HRC 48-52 Core OEM Mold

,

H13 HRC 48-52 OEM Mold

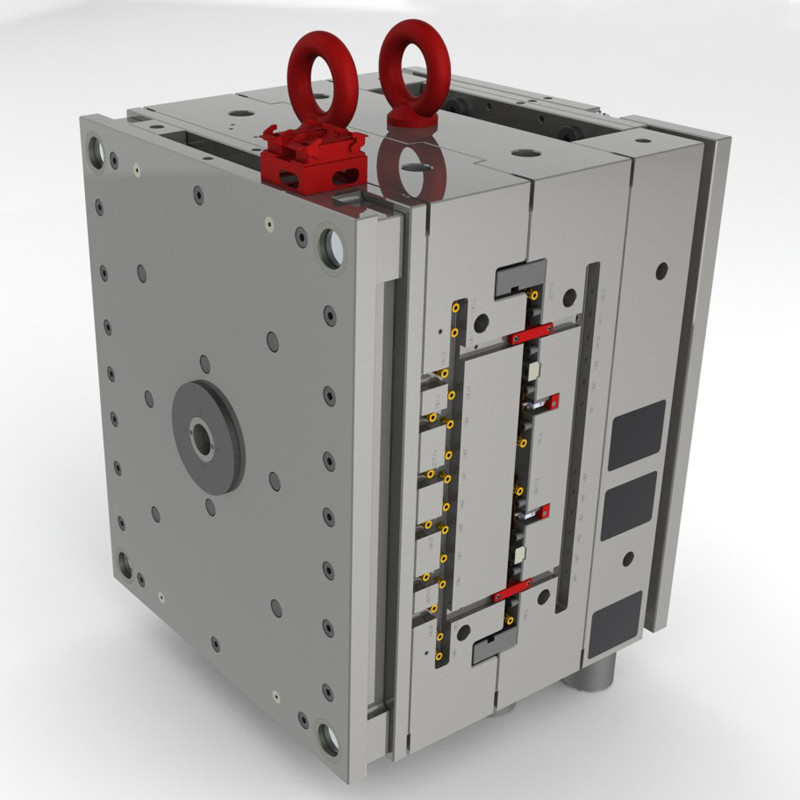

LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold



Product Details Description

Mould standard DME/HASCO
Plastic Materials PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PA6, PBT+GF, PC/ABS, PEEK, HDPE, TPU, PET, PPO,etc.
Quality RoSH and SGS standard
Feature Non marking and Non flash
Size According to your 2D, 3D Drawing
Package Standard exported Wooden box packed, Fumigation process(upon required)
Mold Building Lead Time T1, 4-5 weeks, Part measurement report (upon required).
Mould Base Hasco Standard, European Standard, World Standard
Mould Base Material LKM, FUTA, HASCO, DME,...etc. Or as per Customer's Requirment.
Surface Finishing Texture(MT standard), High gloss polishing
Cavity/Core Steel P20, 2311, H13, 2344, Starvax 420, 236, AdC3, S136, 2312, 2379, 2316, 2083, Nak80, 2767.etc.
Hot/ Cold Runner HUSKY, INCOE, YDDO, HASCO, DME, MoldMaster, Masterflow, Mastip, Taiwan made brand...etc.
Mould Life 5,000 to 1,000,000 Shots. (According to your working environment.)



LKM H13 HRC 48-52 Core OEM Design With Hot Runner System Full Harden Mold 0

We set the difference by diversity with the capacity in manufacturing tools range from large, middle to small size. KYE is an innovative and dynamic team with more than 10 years of experience.This team is at your service offering professional expertise, flexibility and accuracy in assumed deadlines. We are the objective to arrive together with success to the target.



KYE is a professional plastic injection molding company since 2009. We provide high-quality, low-cost plastic injection mold tooling and custom plastic molded parts to customers all over the world. We provide custom plastic injection molding and parts at a very competitive cost.

KYE Mould satisfies our customers’ plastic injection molding needs with quality and speed. Whether you need a plastic injection molding company to build your plastic molding tool and plastic parts, or if you need an export mold to produce plastic parts in your own facility, we’re ready to get the job done with good quality and service:



1.Product design
a. We can develop new products based on samples or prototypes by using reverse engineering,3D digitizing and laser scanning technology.
b. We can develop new products according to simple sketch and brief description like function.dimension etc.We provide customers with 3D model and 2D as request.
c. We can join in the customer’s design group. for example: summit the economic plan to save cost.point out the existing design problems for product such as the undercut.sharp angle .processing difficulty and so on.



2.Mold-flow analysis
This is a very important process,because we need to understand the possibility of product in advance in order to prevent some possible problems like air trap.mark.and welding line etc. especially for the big product,so we introduce the advanced moldflow analysis software and professional engineers to stimulate ,analyze ,optimize and validate plastic parts and mold design .it effectively pre-prvent the potential problems as so to save cost ,control quality and guarantee delivery time.



3.prototype-making

For some projects,Prototype is inenvitable process.it can help engineer check the product function and also prevent some problems which should be found after mould trial. In order to meet the requirement,we bought the advanced prototype equipment and cultivate the high-skill staff to do the prototype by CNC or laser machine . As a result ,it can help us provide customers with high-quality prototype for confirmation very fast.



4.Injection

Horinzonal injection machine

vertical injection machine

Double colour rotary machine with air and robot assist injection machine



5.second –Processing

Spray painting

Pad printing and silkscreen printing

Engraving

Assembling



Brief introduction of service process

1. Project management flow chart
First, we received your request for quotation and design files and give you a detailed quotation. Usually we will give you quotation within 24 hours.
Once you approve the order, we will start the mold deign, it needs about 3 days, because at the beginning of each project, our engineer need to sit together and have a meeting to find a best solution for the mold design.
After finished the mold design, we will send you a 3D mold assembly drawing for you to check and confirm.
As soon as you confirmed the mold assembly drawing, we will purchase steel material and give you a schedule about your project. After that, we will start the mold making. When the mold is finished, we will have the first mold trial and send you some free samples to check and test.
If you think the sample is good, then we will do the mass production as required. And if the samples are rejected, we will modify our molds.
When the production finished, we will pack the goods and deliver it according to your requirement. Meanwhile, we will sen you the packing pictures.

2. Quotation sheet
After receiving your RFQ, we will quote price and send you a detailed quotation sheet. As you can see from this sheet, we will mention the mold cavities, steel material, injection system, mold size, mold weight, mold life, lead time as well as the price.
And about the price, what important is that this price is valid within a week. Because you know, the material price and the exchange rate change day by day.

3. Weekly report:
During the mold making, we will send you the weekly report each week to keep you noted about the mold progress.

4. Sample inspection report:
Usually when sending you the first trial samples, we will also send you an inspection report together for you to check the part size.

5. Note for mold changes or modifying
If there is something about the sample which are not ok, we will make a note for mold changes or modifying. In this note, we will point the problem, the relative solution, the time as well as the time needed.

6. The final one is a sheet about all the details for mold deign
When we do the mold design, we need to take all this information into our consideration to guarantee a best solution for the mold
design



OUR ADVANTAGE

1. Owned mold making workshop

KYE has owned mold workshop with 2,000 squre meteres in house to make sure the high quality and lead time.



2. Professional Engineer team

11 year of full expereience in line of plastic mold and molding, their professional skill can offer you the best solution for the project and help you manage the project in the best effective way.



3. Various Service

Our service including Automotive parts, Home Appliance, Electronic and Medical parts with one stop service

including product design, mould fabrication and second processing,such as Spray painting,Printing, Chrome, Engrave and assembling,etc.



4. Injection molding workshop

KYE has around 40-50 sets of injection machine.



5. Thorough project management system

KYE has thorough project management system from sales team to engineer and worker team.



FAQ

Q1: Does your company make mold by yourself?

A: Yes, we have our owned mold workshop around 2000 square meters including mold and molding.



Q2: Do you make customized products based on our design drawings?

A: Yes, we are a professional metal fabrication factory with an experienced engineering team to make custom products according to clients'drawings.



Q3: Will my drawing be safe after you get it?

A:Yes, we will not release your design to third party unless with your permission. And we can sign the NDA before you send the drawing.



Q4: What is the MOQ?

A: Usually we don't set MOQ, but the more, the cheaper. Besides, we are happy to make prototype or sample for clients to ensure quality standard.



Q5: Whether some samples can be provided?

A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
