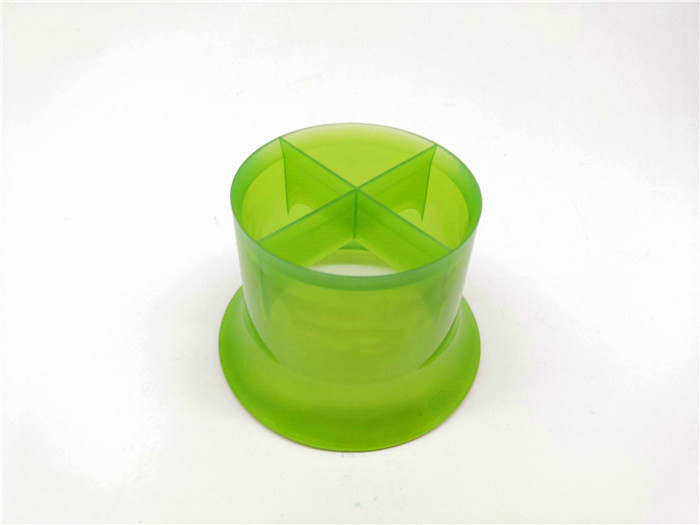

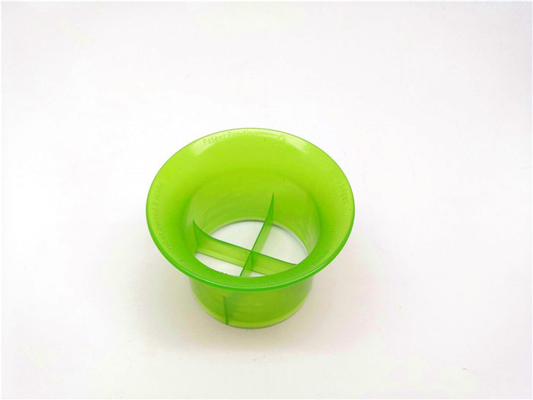

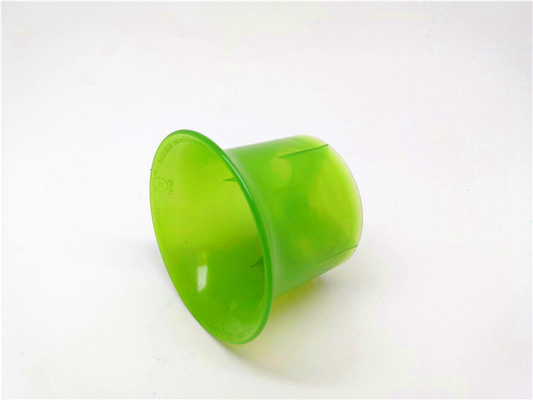

Semi Transparent DME S50C Plastic Injection Mold Maker

Semi Transparent DME S50C Plastic Injection Mold Maker

  • Semi Transparent DME S50C Plastic Injection Mold Maker
  • Semi Transparent DME S50C Plastic Injection Mold Maker
  • Semi Transparent DME S50C Plastic Injection Mold Maker
Semi Transparent DME S50C Plastic Injection Mold Maker
Product Details:
Place of Origin: China
Brand Name: KYE
Certification: ISO9001, ISO14001, IATF16949
Model Number: 2 plate-mold
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: To Be Negotiation
Packaging Details: Wooden Case With Steel Frame
Delivery Time: 30-35 working days
Payment Terms: T/T
Supply Ability: 50 Sets Mould Per Month
Contact Now
Detailed Product Description
Mold Type: 2 Plate-mold Material: PC
Mold Material: LKM H13 HRC48-52 Mold Base Material: S50C LKM, DME, LKM & HASCO & DME, HASCO, LKM Mould Base
Runner System: Cold Runner Mold Life: 500,000 Shots
Software: UG, PROE, CAD, CAD/ProE/UG/SOLIDWORKS
High Light:

S50C Plastic Injection Mold

,

DME Plastic Injection Mold Maker

,

Semi Transparent DME Injection Mold

Semi Transparent DME S50C Plastic Injection Mold Maker



KYE service covering industrial of Automotive ,Baby care&Toy, Bi-color mold, Die-casting, Home & Office Appliance, Electronic, Industral, Medical product, Prototype and Rubber product etc.



We set the difference by diversity with the capacity in manufacturing tools range from large, middle to small size. KYE is an innovative and dynamic team with more than 10 years of experience.This team is at your service offering professional expertise, flexibility and accuracy in assumed deadlines. We are the objective to arrive together with success to the target.



What KYE can offer

1.Product design
a. We can develop new products based on samples or prototypes by using reverse engineering,3D digitizing and laser scanning technology.
b. We can develop new products according to simple sketch and brief description like function.dimension etc.We provide customers with 3D model and 2D as request.
c. We can join in the customer’s design group. for example: summit the economic plan to save cost.point out the existing design problems for product such as the undercut.sharp angle .processing difficulty and so on.



2.Mold-flow analysis
This is a very important process,because we need to understand the possibility of product in advance in order to prevent some possible problems like air trap.mark.and welding line etc. especially for the big product,so we introduce the advanced moldflow analysis software and professional engineers to stimulate ,analyze ,optimize and validate plastic parts and mold design .it effectively pre-prvent the potential problems as so to save cost ,control quality and guarantee delivery time.



3.prototype-making

For some projects,Prototype is inenvitable process.it can help engineer check the product function and also prevent some problems which should be found after mould trial. In order to meet the requirement,we bought the advanced prototype equipment and cultivate the high-skill staff to do the prototype by CNC or laser machine . As a result ,it can help us provide customers with high-quality prototype for confirmation very fast.



4.Injection

Horinzonal injection machine

vertical injection machine

Double colour rotary machine with air and robot assist injection machine



5.second –Processing

Spray painting

Pad printing and silkscreen printing

Engraving

Assembling



Product Details Description

Mould Type 2 plate-mould
Design software UG, ProE, Auto CAD, Solidworks, etc.
Mould Material 718H, P20, NAK80, S316H, SKD61, etc.
Hardness of the steel HRC48-52
Mould Base HASCO, DME, LKM, etc.
Runner Hot runner, Cold runner, as per customers requirementand part structure.
Mould Cavity Single-cavity or Multi-cavit, as per customers requirementand part structure.
Ejection Techniques Pin ejection, sleeve ejection, bar ejection, blade ejection, etc.
Gate Type Edge gate, sub-gate, pin gate, side gate, etc.
Mould hot treatment Quencher, Nitridation, Tempering, etc.
Mould cooling system Water cooling or Beryllium bronze cooling, etc
Mould Surface EDM, texture, high gloss polishing
Mould Life >500,000 shots
Equipments High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine
Raw material of plastic injection PP, PA6, PLA, AS, ABS, PE, PC, POM, PVC, PET, PS, TPE/TPR, etc.
Lead Time 4-5 weks working days



                           Semi Transparent DME S50C Plastic Injection Mold Maker 0



Our Advantage:

1. Owned mold making workshop

KYE has owned mold workshop with 15 CNC machine,10 EDM, 4 wire cutting,milling machines, drilling machines, 2CMM and 3CMM in house to make sure the high quality and lead time.

2. Professional Engineer team

KYE has 6-8 engineers with 10 year of full expereience, their professional skill can offer you the best solution for the project and help you manage the project in the best effective way.

3. Various Service

We offer various service including Automotive parts, Home Appliance, Electronic and Medical parts with one stop service

including product design, mould fabrication and second processing,such as Spray painting,Printing, Chrome, Engrave and assembling,etc.

4. Injection molding workshop

KYE has around 40-50 sets of injection machine range from 50T to 600T.



What kind of information need for Plastic Potty Mould quotation?

1. Sample photos with size or 2D/3D design or actual sample.

2. MOULD Cavity quantity

3. Runner type, cold runner or hot runner

4. Mould steel type,P20, 718, 2738,H13,S136,2316,and so on.

5. Injection machine parameter or Potty size(tie rod distance)
