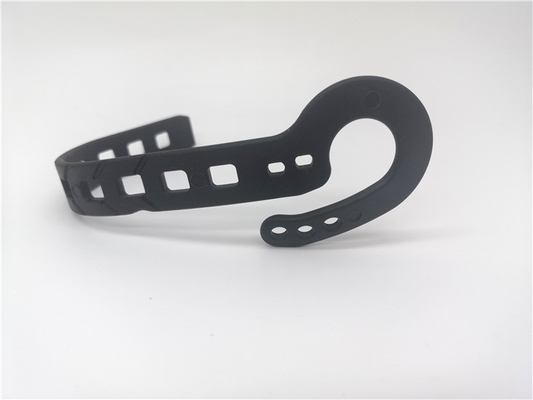

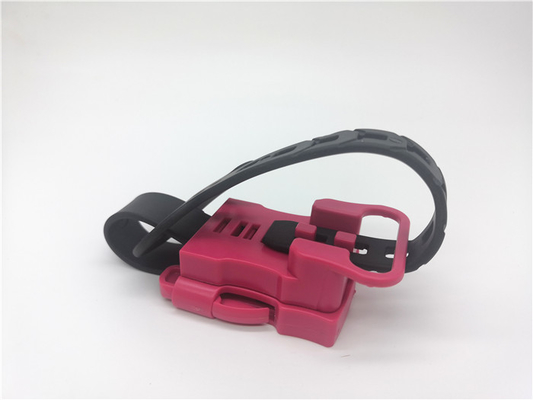

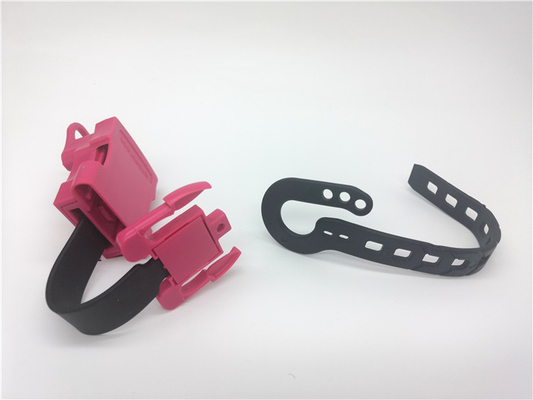

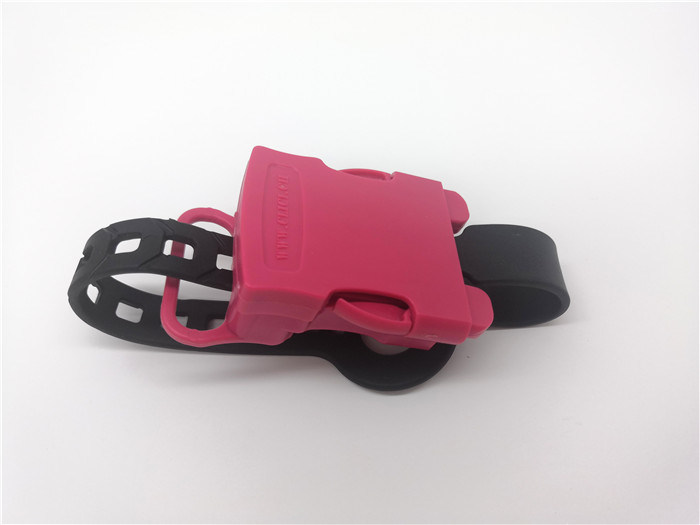

300000 Shots Plastic Injection Mold

300000 Shots Plastic Injection Mold

  • 300000 Shots Plastic Injection Mold
  • 300000 Shots Plastic Injection Mold
  • 300000 Shots Plastic Injection Mold
  • 300000 Shots Plastic Injection Mold
300000 Shots Plastic Injection Mold
Product Details:
Place of Origin: China
Brand Name: KYE
Certification: ISO9001:ISO14001
Model Number: 2 plate-mold
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: To Be Negotiation
Packaging Details: Artificial Wooden Box with Steel Frame
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 30 Sets Mould Per Month
Contact Now
Detailed Product Description
Mold Material: P20/718/738/NAK80/S136, NAK80, S136, P20, 718H Mold Base Material: S50C LKM, DME, LKM & HASCO & DME, HASCO, LKM Mould Base
Cavity: Multi Cavity Mold Runner System: Cold Runner
Surface Treatment: Customized, Texture, Mirror Polish, Polishing Or Texture, Polishing Design Software: UG, PROE, CAD, CAD/ProE/UG/SOLIDWORKS, CATIA
Mold Life: 300,000 Shots Type: Plastic Injection Mold
High Light:

NAK80 Plastic Injection Mold

,

300000 Shots Injection Mold

,

S136 P20 Injection Mold

300000 Shots Plastic Injection Mold



Project description

Mold type Injection mould
Mould material S136, P20, 718H , 2738 , NAK80 , etc
Mould base LKM, HASCO, DME,etc
Runner system HOT/COLD
Cavity single or multi cavity
Mould life 100,000-1,000,000 shots
Process craft CNC, High speed carve, Milling, Griding, Drilling, Engraving, etc
Shrinkage according to material
Injection system Eject pin
Mould design 2D,3D
Mould software UG,PRO/E,CAD, Solidwork
Gate point Edge gate/pin point gate
Slide outer/inner
Surface finish Tech polish/high gross/texture
Main equipment

CNC Machines , CNC Engraving Machines, EDMs, Electrode-wire Cutting Machines 2.5 D Measuring Apparatus(55T-380T) Injection machines Milling Machines Grinding Machines Drilling Machines

Specifitations Depends on customers requirements



          300000 Shots Plastic Injection Mold 0



KYE sets the difference by diversity with the capacity in manufacturing tools range from large, middle to small size. KYE is an innovative and dynamic team with more than 10 years of experience.This team is at your service offering professional expertise, flexibility and accuracy in assumed deadlines. We are the objective to arrive together with success to the target.

1.Product design
a. We can develop new products based on samples or prototypes by using reverse engineering,3D digitizing and laser scanning technology.
b. We can develop new products according to simple sketch and brief description like function.dimension etc.We provide customers with 3D model and 2D as request.
c. We can join in the customer’s design group. for example: summit the economic plan to save cost.point out the existing design problems for product such as the undercut.sharp angle .processing difficulty and so on.



2.Mold-flow analysis
This is a very important process,because we need to understand the possibility of product in advance in order to prevent some possible problems like air trap.mark.and welding line etc. especially for the big product,so we introduce the advanced moldflow analysis software and professional engineers to stimulate ,analyze ,optimize and validate plastic parts and mold design .it effectively pre-prvent the potential problems as so to save cost ,control quality and guarantee delivery time.



3.prototype-making

For some projects,Prototype is inenvitable process.it can help engineer check the product function and also prevent some problems which should be found after mould trial. In order to meet the requirement,we bought the advanced prototype equipment and cultivate the high-skill staff to do the prototype by CNC or laser machine . As a result ,it can help us provide customers with high-quality prototype for confirmation very fast.

4.Injection

Horinzonal injection machine

vertical injection machine

Double colour rotary machine with air and robot assist injection machine

5.second –Processing

Spray painting

Pad printing and silkscreen printing

Engraving

Assembling



FAQ



Q: Are you factory or trading company?
A: We are plastic injection mould factory

Q: Where is your main market?
A: We export moulds and plastic products all of word, our main markets are America, European and Middle East.

Q: What is the machining accuracy of your facilities?
A: We have inhouse  CNC machine, the tolerance is +-0.025mm

Q: How many moulds do you make per year?
A: Now we can make around 300-400 sets mould per year.

Q: Do you have injection machine for mould test or make the products?
A: Yes, we have 90T, 160T, 250T, 390T, 450T, 650T injection machine for mould test and production.

Q: If your mold have problem, how do you solve the problem?
A: If some spare part broken, we will send you new one. If the mould quality problem, we will repair and pay the ship cost. Or we make another new mould to you free.

Q: What is your payment term?

A: T/T or L/C is workable to you, normal we accept T/T 50% with order, and the balance before the shippment.
